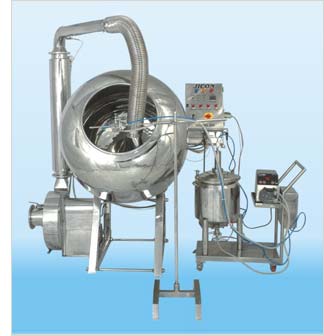

Conventional coating pans are used to film coat or sugar coat tablets, pills, etc. Apart from the pharmaceutical industry, these machines are used in a variety of industries such as Pharmaceutical, Confectionery, Food and others.
The product is to be filled inside the pan. During the rotation motion of the pan, coating material is sprayed by spraying system. At the same time hot air is supplied through inbuilt Hot air blower system which dries the coat rapidly. Thus a solid and smooth surface is formed over the product.
Jicon Industries are leading Pharmaceutical Machines Manufacturers and Exporters in Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador.
| MODEL | PAN SIZE | APPROX. CAPACITY |
MAIN MOTOR |
BLOWER MOTOR |
| CP-300 | 300 mm | 8 kg. | 0.37 kw. | 0.18 kw |
| CP-600 | 600 mm | 30 kg. | 0.75 kw. | 0.18 kw |
| CP-900 | 900 mm | 50 kg. | 0.75 kw. | 0.37 kw |
| CP-1050 | 1050 mm | 70 kg | 1.0 kw | 0.37 kw |
| CP-1200 | 1200 mm | 100 kg. | 2.2 kw. | 0.75 kw |
| CP-1500 | 1500 mm | 150 kg. | 3.7 kw. | 1.0 kw |
Spray coating machines for rapid and uniform coating of tablets, granules and pallets. Spray coating machine work as an attachment to the coating pan. These machines feature stainless steel 316 quality pressure vessel provided with SS jacket with electric heaters and thermostat control.
